Installing a filter causes pressure loss, which reduces the airflow and static pressure
that can be obtained from the fan.
When selecting a fan, be sure to allow sufficient performance margin to compensate
for the pressure loss caused by the filter.
Example:

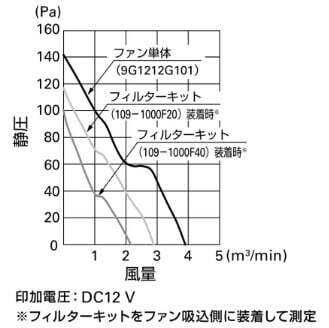

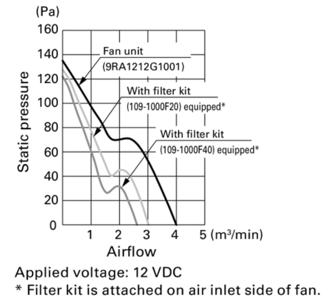

Airflow and static pressure characteristics of a fan alone and with a filter installed
(120 mm square fan)
*Note: If the filter becomes clogged after long-term use, sufficient airflow may not
be maintained, which could lead to equipment malfunction.
Replacement filters are also available.
To maintain proper performance, replace the filter periodically.
For information on replacement filters, please refer to the catalog.
