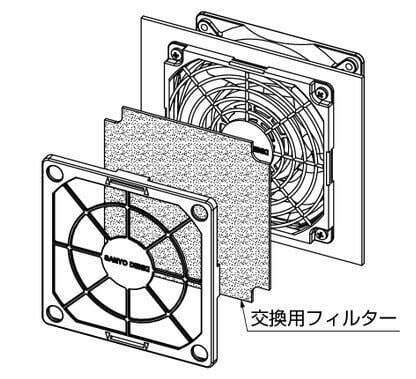

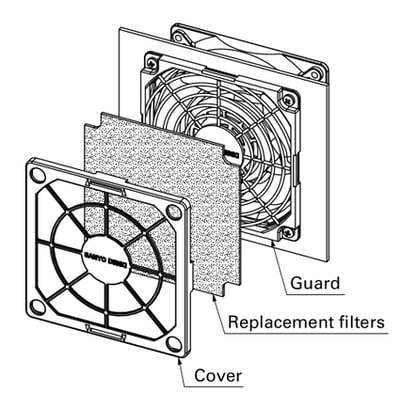

The resin filter kit consists of three parts: a guard, a filter, and a cover.
The kit is shipped fully assembled and can be installed immediately.

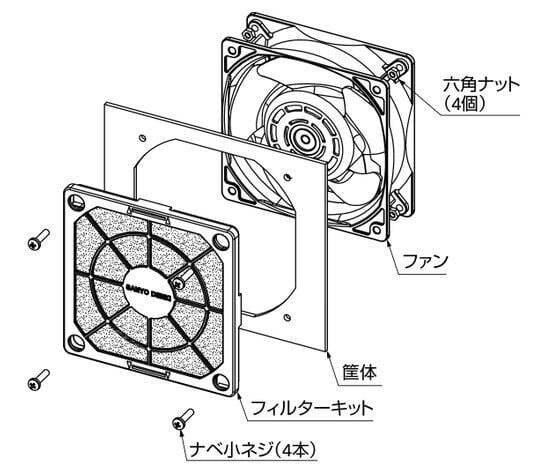

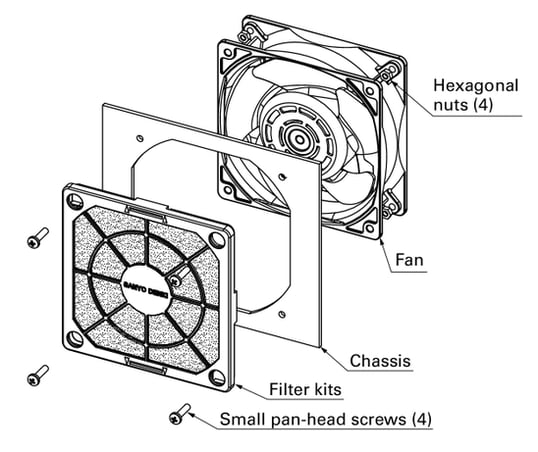

Insert the mounting screws through the openings in the cover and secure the kit in place.
For details, refer to the figure below.
The kit is shipped fully assembled and can be installed immediately.
Insert the mounting screws through the openings in the cover and secure the kit in place.
For details, refer to the figure below.
The filter can also be replaced by removing the cover without removing any screws.
